Description

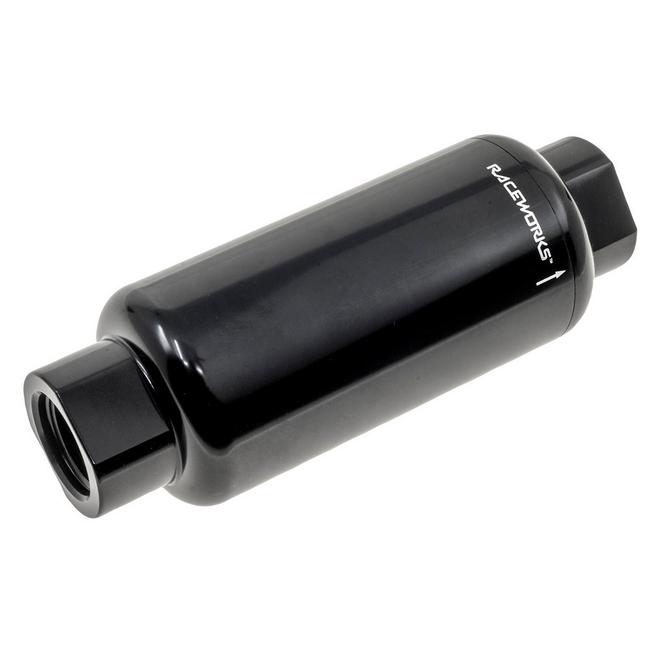

Raceworks Billet inline filters contain a total filtration surface area of 374 square centimetres. The filters are directional and washable, and suitable for high horsepower applications, supporting up to 2400LPH @ 3Bar.
See below for more detailed flow ratings. INLINE FUEL FILTERS Stainless lifetime elements and E85 Safe AN-10 ORB. 50mm DIA. Body Length of 110mm. Overall Length is 140mm excluding Male Fittings.
Which Micron level is suitable? The lower the micron level, the finer the particle it filters, but the more restrictive the filter is on flow. Raceworks recommended a 100 or 75micron filter for use pre-pump, and a 40 or 10micron filter for use post-pump (Pre injectors).
| Micron | Max. Flow Rating @ 3Bar* |
|---|---|
| 10 | 1500LPH |
| 40 | 1800LPH |
| 75 | 2100LPH |
| 100 | 2400LPH |
*Maximum flow rate measured with a pressure drop across the filter of 2psi
