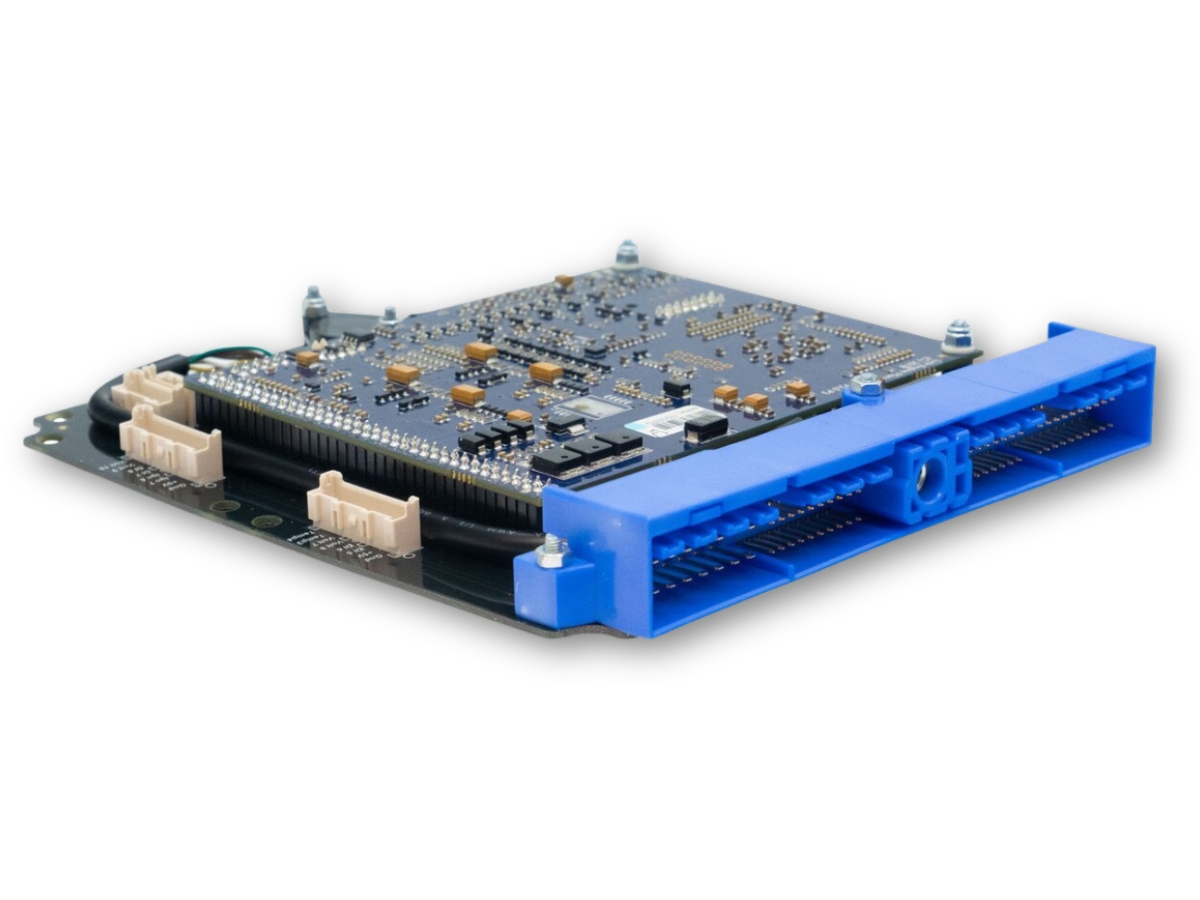

AltezzaLink (TALTX)

Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.

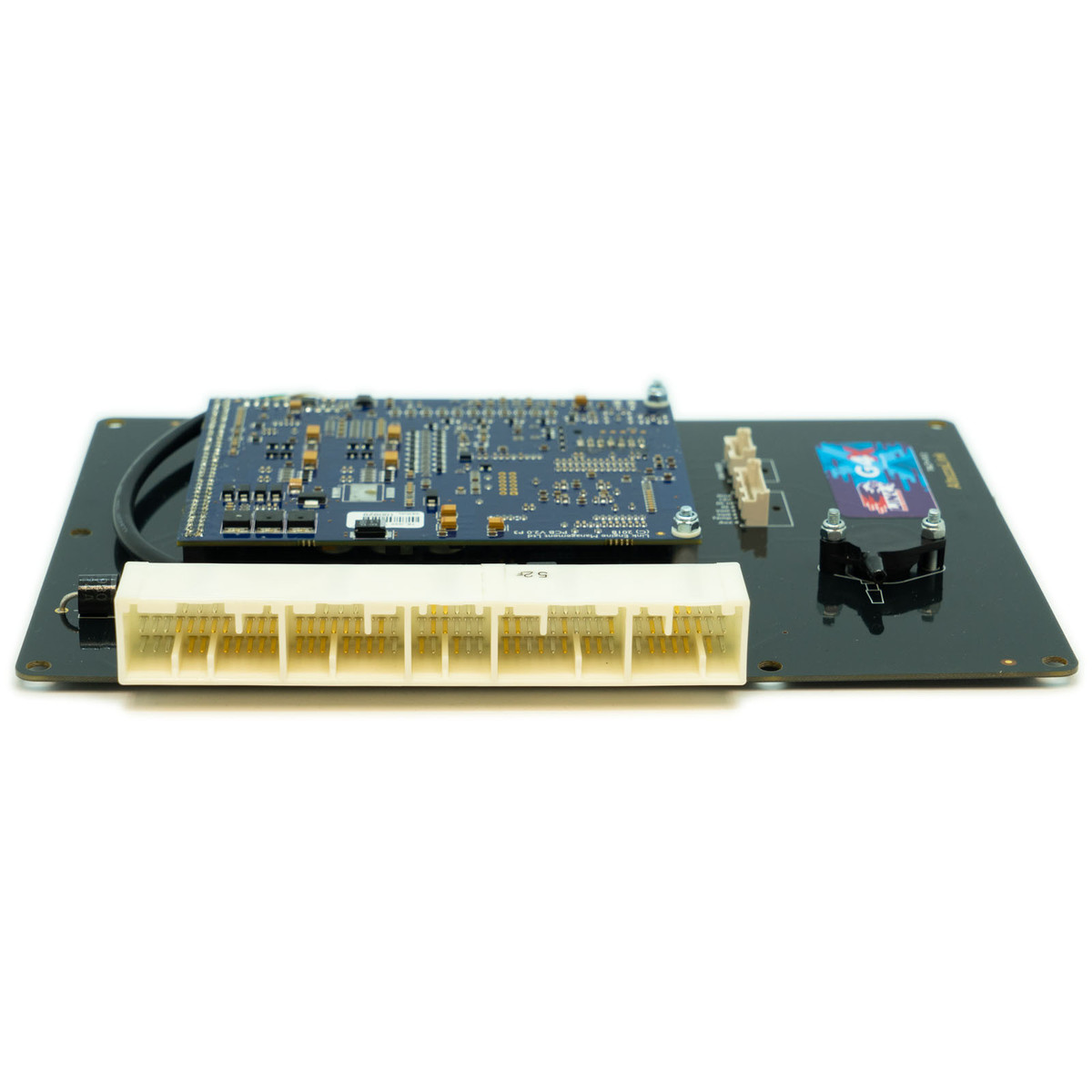

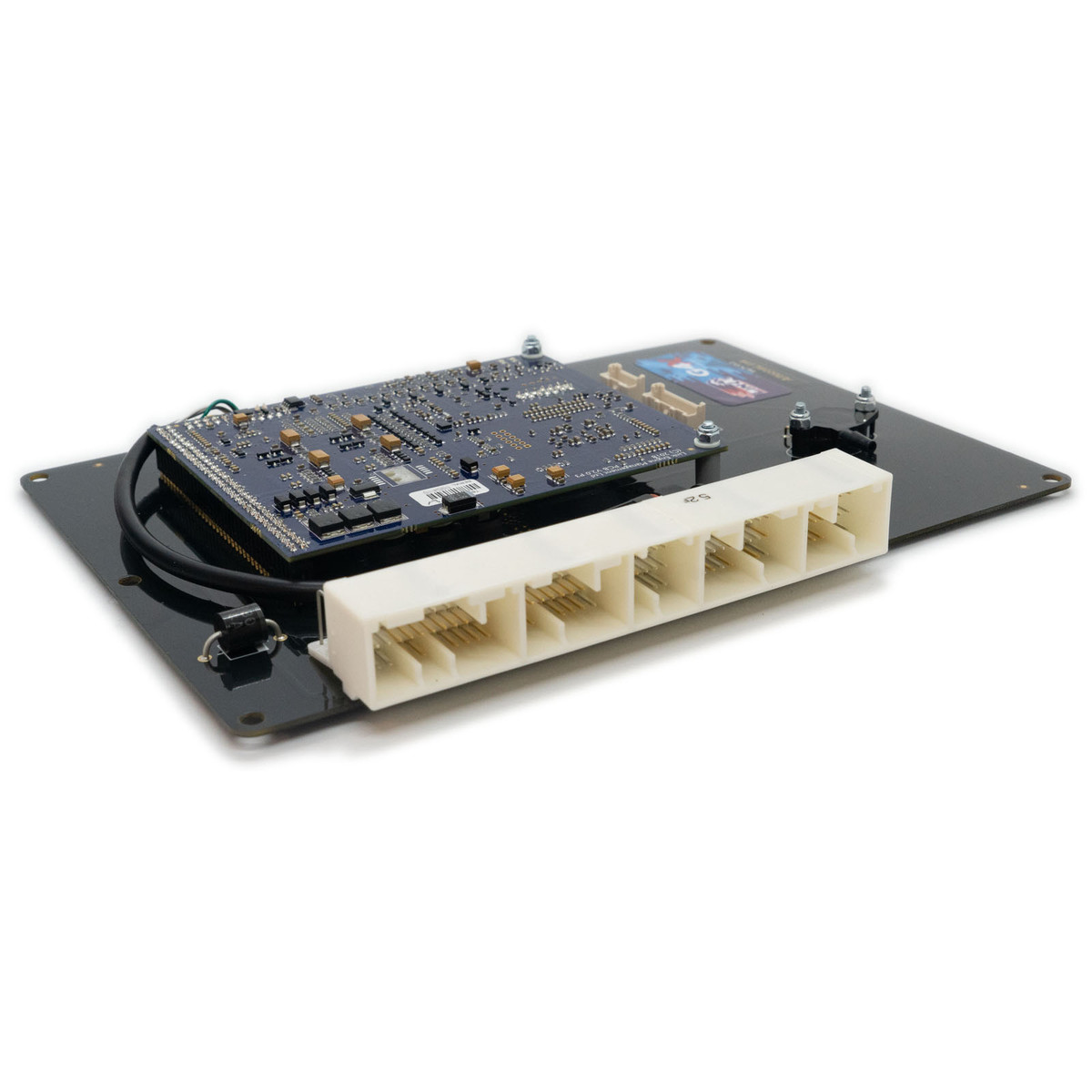

This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 3SGE Beams engine.

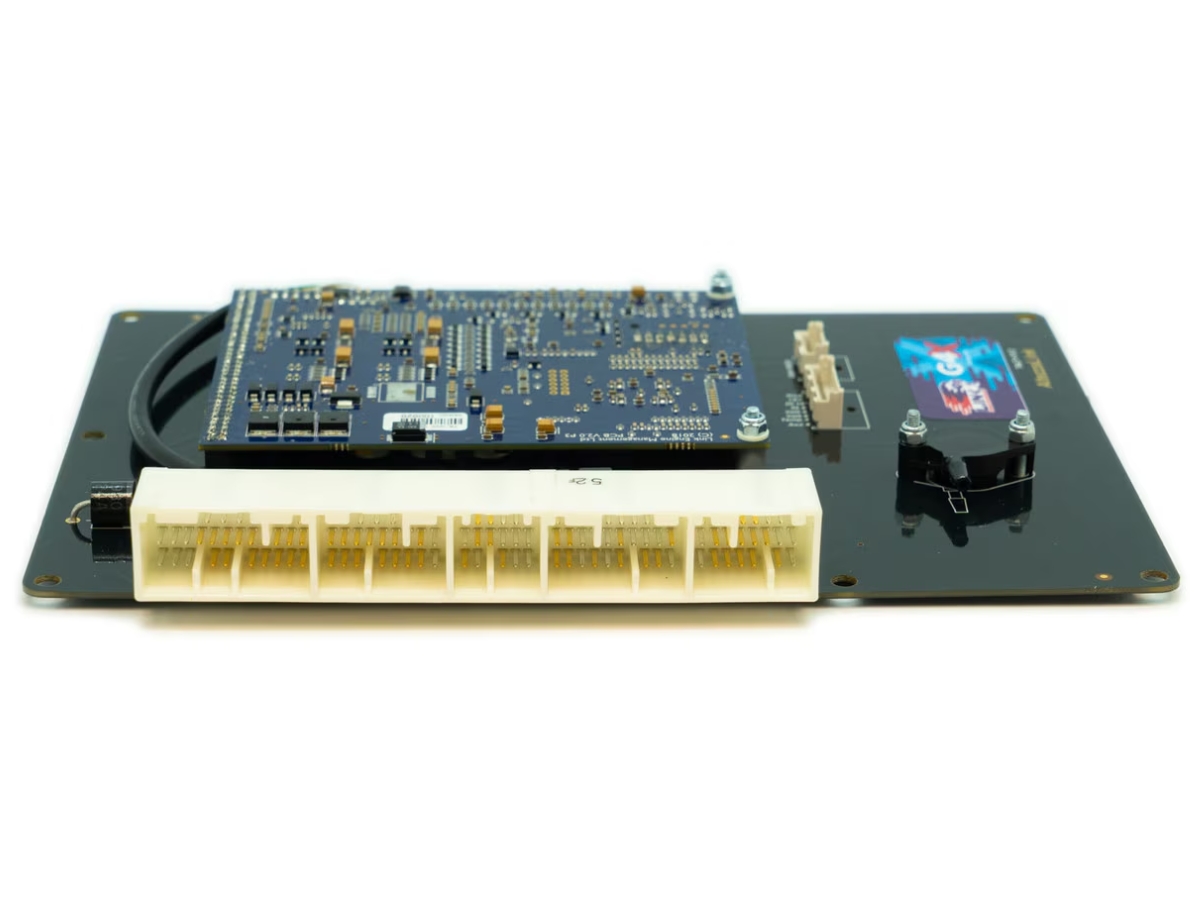

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• ECU includes an onboard 4 bar or 7 bar MAP sensor.
• Most factory features are supported.
• Check the features tab for I/O expansion options

Suitable applications:
1998-2001 Toyota Altezza (XE10)
Lexus IS200 (GXE10)

Link G4X General Specifications

The following expansion connector inputs/outputs are provided:
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI 10                Digital Input for switching functions.
DI 9                Digital Input for switching functions.
An Volt 9        Analog 0-5V input
An Volt 8        Analog 0-5V input
An Temp 4        Temperature sensor input
Aux 8                Auxiliary output (2.0 amps maximum when driving to GND. 0.5 amps maximum when driving high.)
