EVOLink (EVO9X)

Easy to install. Affordable. Reliable.

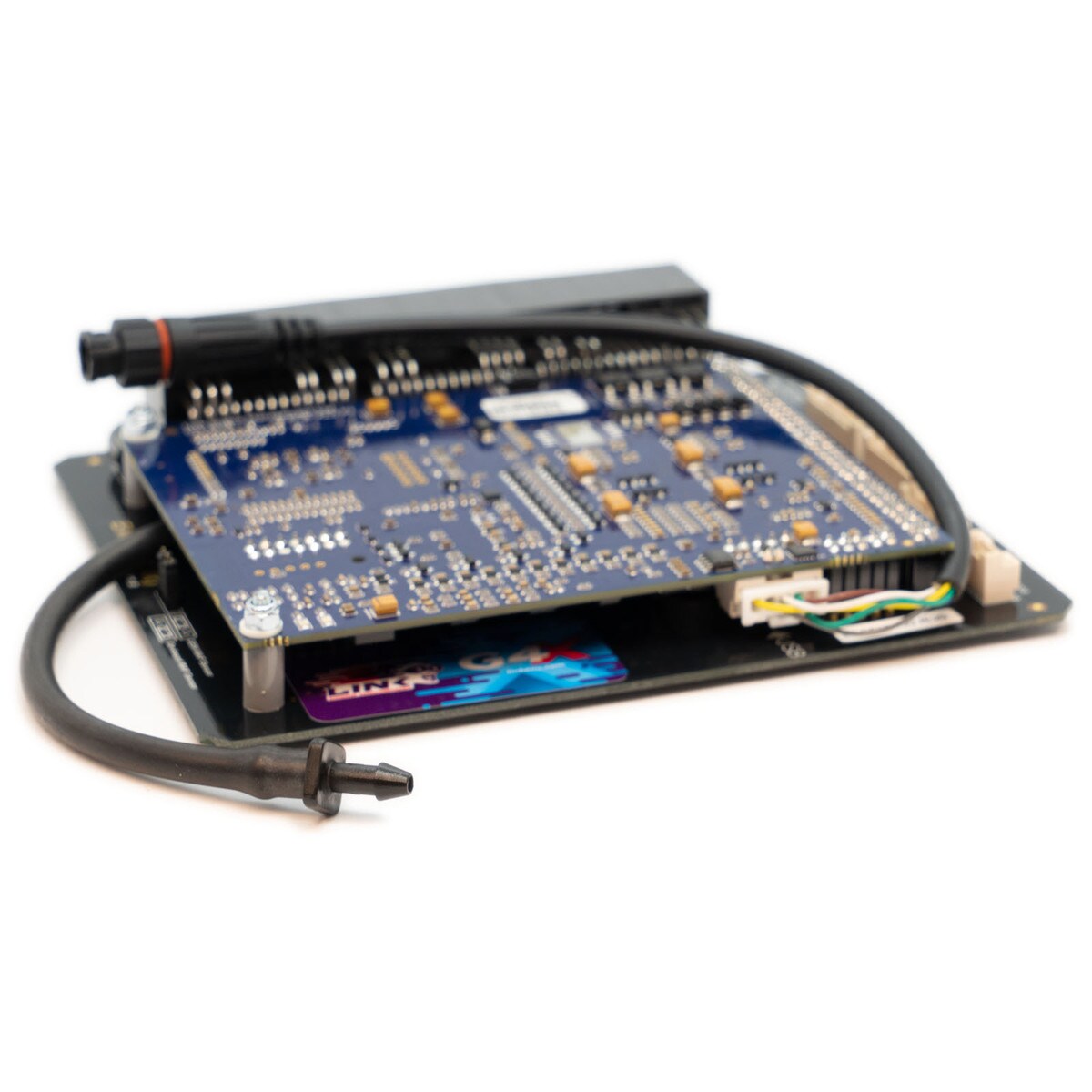

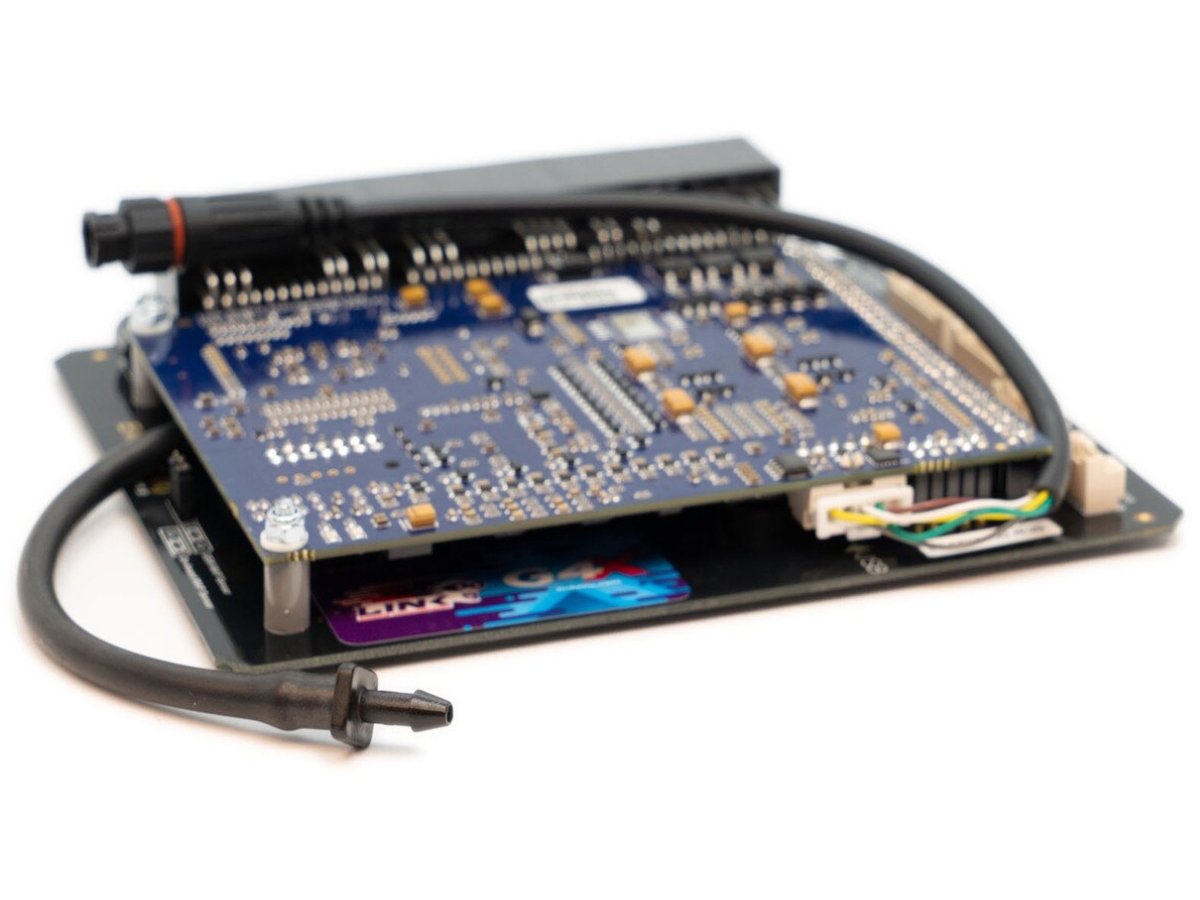

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

This ECU is designed for the EVO 9 4G63 engine.

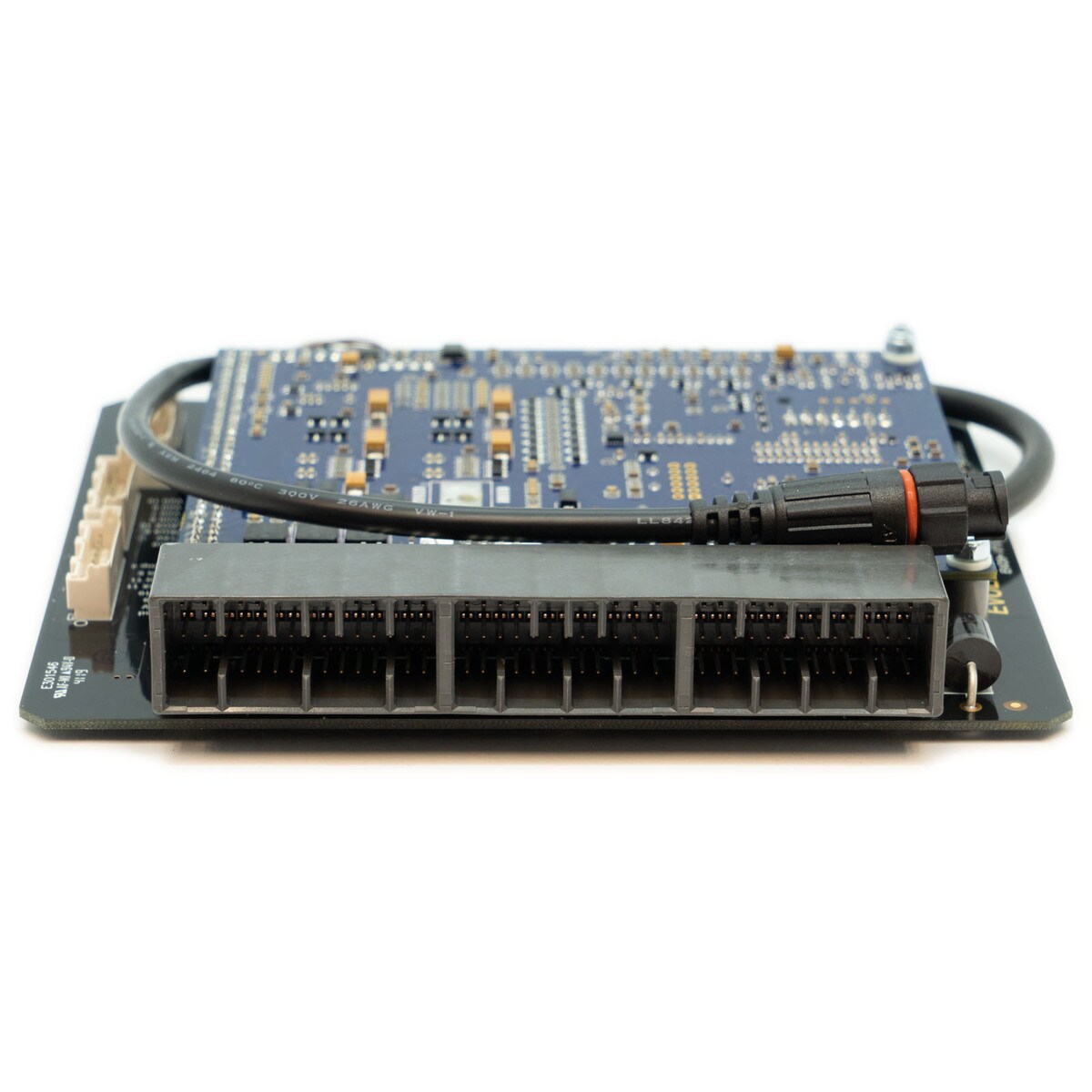

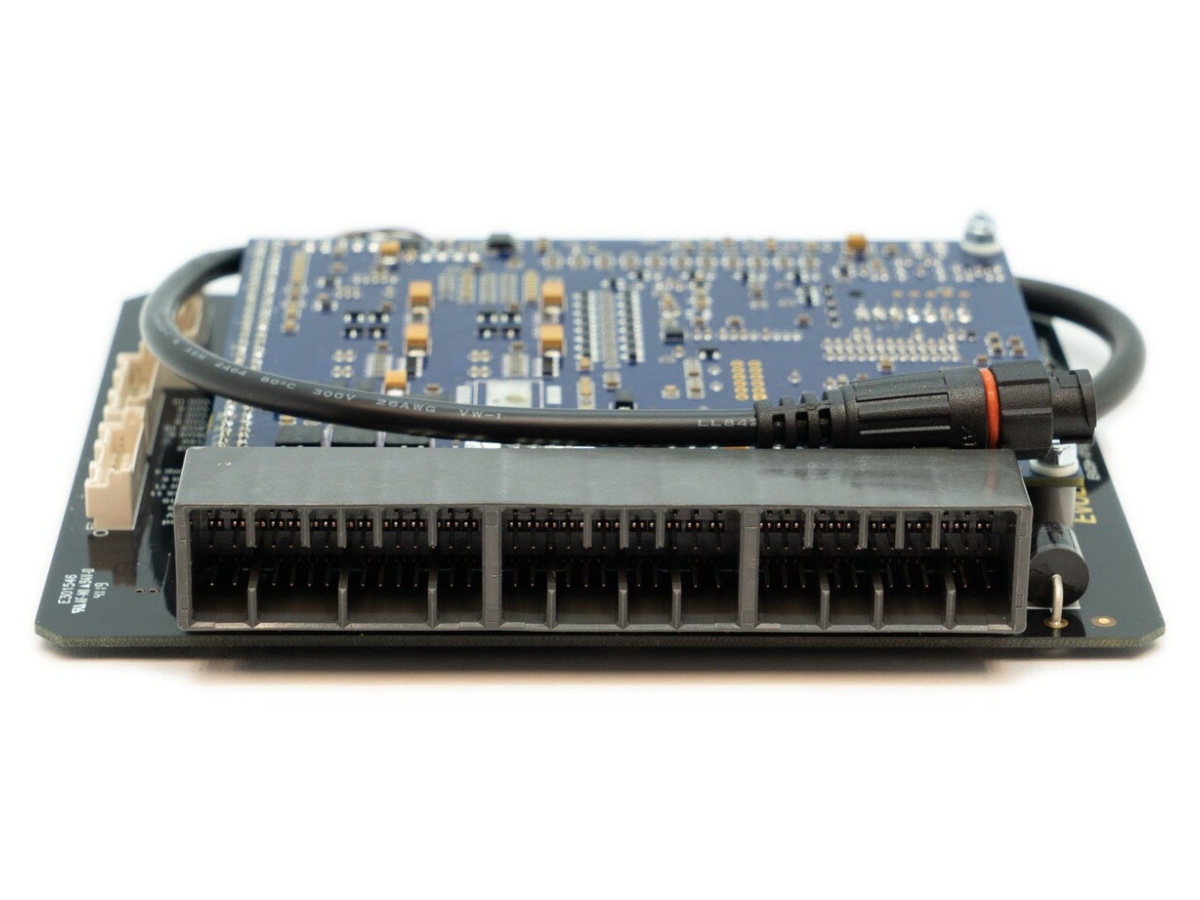

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• Includes onboard 7 bar MAP sensor
• Most factory features are supported

Suitable Applications:
CT9A Lancer Evolution 9, 2005-2007
CT9A Lancer Evolution 8, 2003-2005 with 3 plug ECU ONLY
Any EVO8 car with a 3 plug ECU will also require this ECU.

Link G4X General Specifications

I/O Expansion Options
The following expansion connector inputs/outputs are provided:
Expansion Connector 1:
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI 9                Digital Input
DI 10                Digital Input
Aux 11                Auxiliary Output
An Volt 11        Analog 0-5V input
An Volt 8        Analog 0-5V input
An Temp 4        Temperature sensor input

Expansion Connector 2:
Gnd               Sensor Ground Only
+5V Out        Low Current +5V Supply
Aux 9             EThrottle – can’t be used as an Aux out
Aux 10            Auxiliary Output
An Volt 6        Analog 0-5V input
An Volt 7        Analog 0-5V input
An Volt 9        Analog 0-5V input
An Volt 10        Analog 0-5V input
