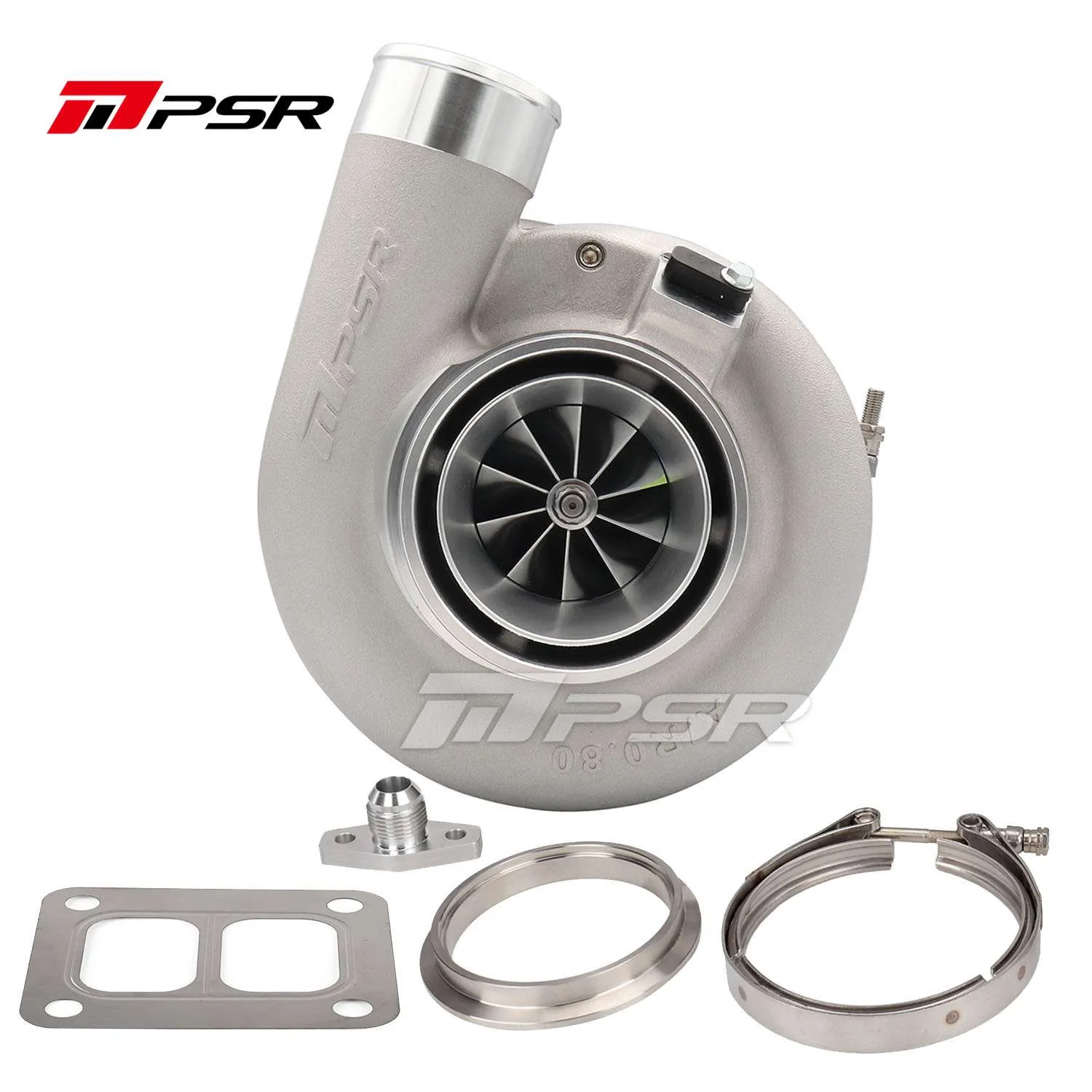

The Pulsar 6270 G-Series Turbocharger features a 62.7×88mm Compressor Wheel and 77x70mm Turbine Wheel. (Also referred to as a G40-900). The dual ceramic ball bearing system provides optimal turbo response and better durability by reducing shaft motion.

Features

• Dual ceramic ball bearing system
• 62mm inducer 10 Blade G-Aero billet compressor wheel
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-surge ported-shroud compressor inlet
• Integrated speed sensor port on compressor housing

The Technical Jargon…

Compressor wheel: 62.7x88mm
Turbine wheel: 77x70mm
Compressor inlet: 4.0″
Compressour outlet: 2.5″
Turbine inlet: T4 Divided
Turbine outlet: 4.0″ V-Band
Water ports: -6AN
Oil feed: Flange Required (Recommended size: -4AN Std T4 Flange)
Oil drain: -12AN (O-Ring sealed Flange Kit Incl’)
