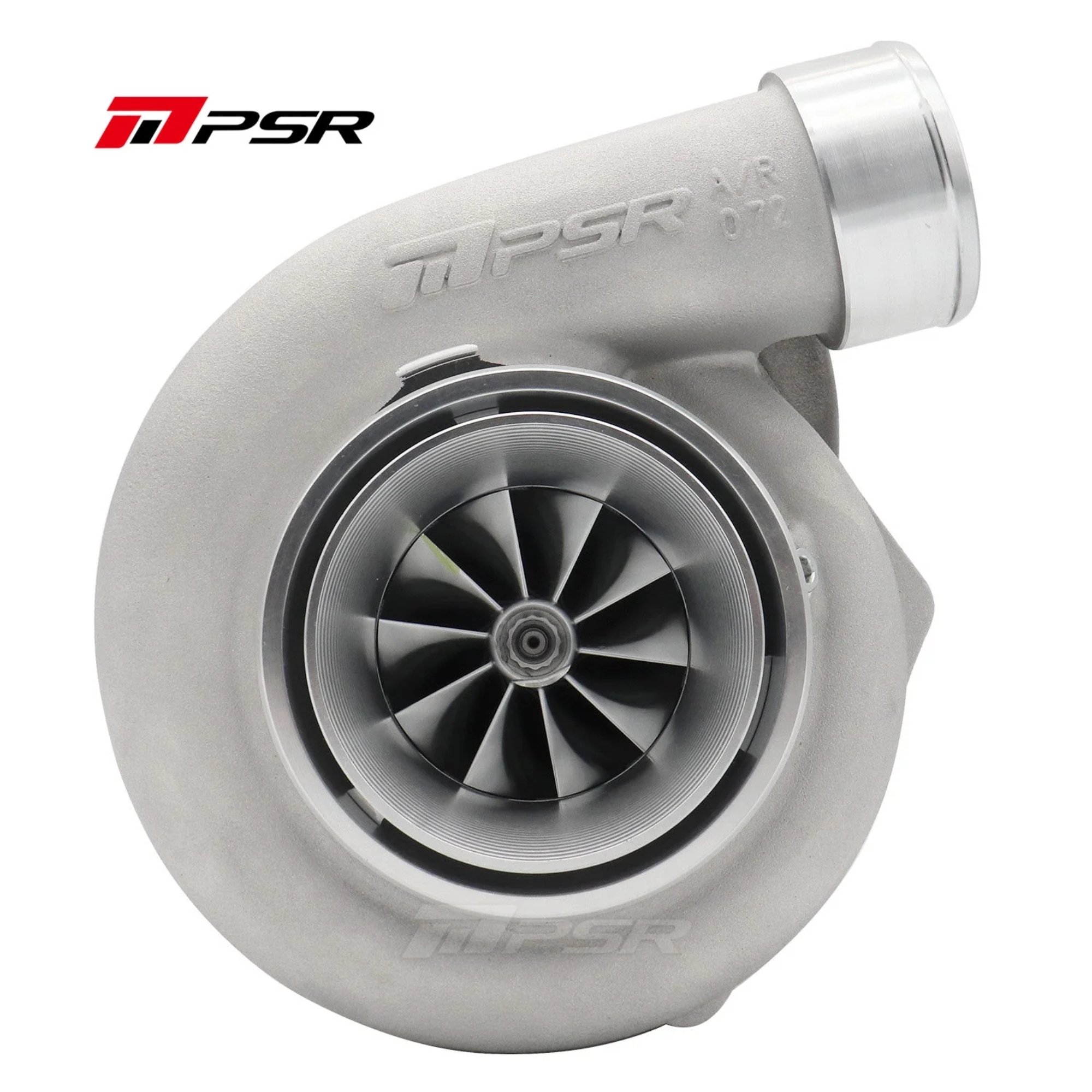

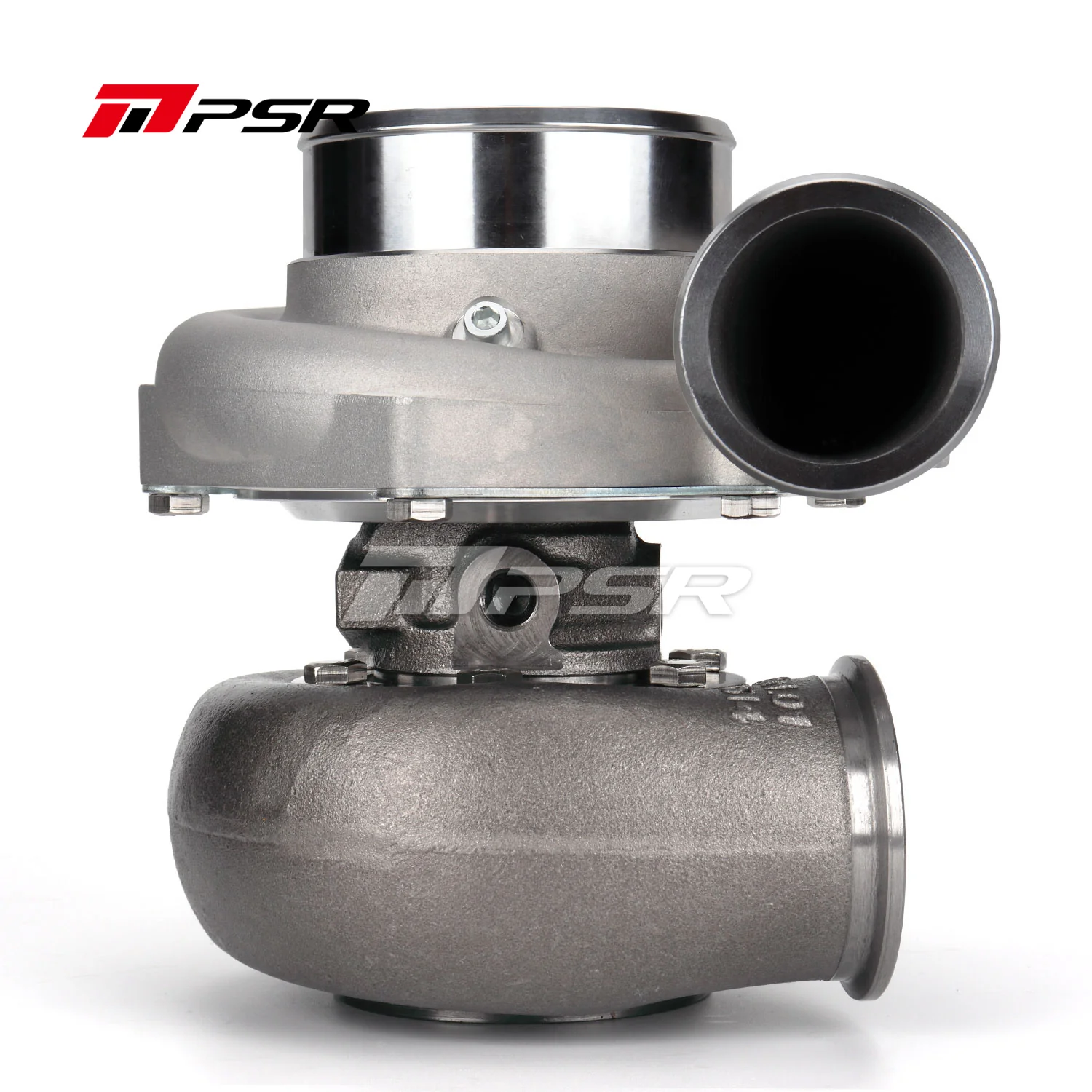

Name: Pulsar PSR3584 Gen3
SKU: 1024
Availability: BackOrder

Description

Dual Ceramic Ball Bearing System
10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 10 Blade Turbine Wheel with High Horsepower
Cover Integrated with the Speed Sensor Port
0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings in option

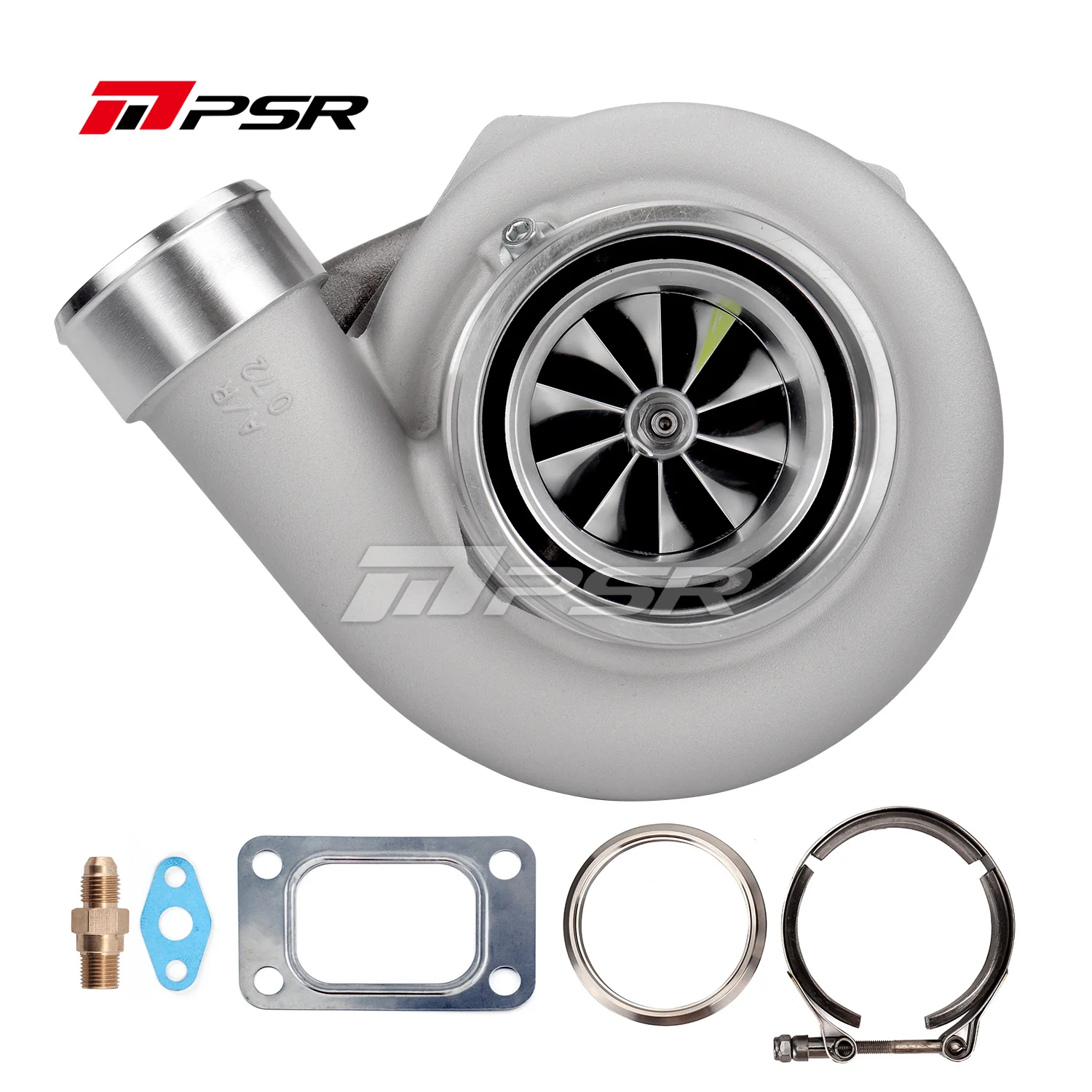

V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
Stronger Turbine Wheel for High flow

- Compressor Wheel: 67*84mm
- Turbine Wheel: 74*66mm
- Compressor Inlet: 4.0” Hose
- Compressor Outlet: 2.5” Hose
- Turbine Inlet: T3, T4, or 2.5″ V-Band
- Turbine Outlet: 3″ V-Band (3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
- We highly recommended running water cooling for better durability
Based off the popular GTX3584RS series turbo, This is very similar but with the larger 66mm rear wheel.
PSR3584 GEN3 TURBO comes with stronger turbine wheel for high flow.

Additional information

Turbine Housing	Dual V-Band [0.83 A/R], Dual V-Band [1.01 A/R], Super Core (No Turbine Housing), T3 Inlet / V-Band Outlet [0.63 A/R], T3 Inlet / V-Band Outlet [0.82 A/R], T3 Inlet / V-Band Outlet [1.06 A/R], T3 Inlet / XR6 5 Bolt Outlet w/IWG [1.06 A/R], T4 Divided Inlet / V-Band Outlet [0.85 A/R], T4 Inlet / V-Band Outlet [0.82 A/R]
